3D instrument micro-hole laser forming machine
Basic Info
Model No.: BBLC5000
Application: Laser Cutting
Applied Material: Acrylic, Glass, Leather, Mdf, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
Old And New: New
Laser Type: Fiber Laser
Cutting Area: 1500mm*3000mm
Support Graphic Format: Dxf, Dwg
Whether CNC: Yes
Cooling Method: Water Cooling
Place Of Origin: China
Certification: Ce, Ccc
Additional Info
Transportation: Ocean,Land,Air
Port: Shanghai Port,Shandong Port,Guangzhou Port
Product Description
The 3D Instrument Micropore Laser Forming Machine is a high-precision laser processing equipment designed for micro-hole forming in three-dimensional structures, including uniform-diameter, variable-diameter, and irregular-shaped precision 3D drilling, blind grooves, and forming. Integrating ultrafast laser technology, high-precision motion control systems, and proprietary automated modular forming algorithms, this machine addresses complex micro-hole processing needs in 3C electronics, aerospace, biomedical, semiconductor, and precision mold industries, enabling efficient, accurate, and stable micro-hole forming.
Advantages of 3D Instrument Micropore Laser Forming Machine
Ultra-short pulses with small spot size and minimized heat-affected zones prevent material discoloration, deformation, or carbonization, preserving original material properties.
Capable of 5μm minimum aperture processing, supporting diverse hole types: uniform/variable-diameter holes, blind grooves, through-holes, stepped holes, irregular-shaped holes (e.g., snowflake patterns), and thin-walled 3D device drilling.
Multi-axis configuration enables precise multi-angle machining for complex 3D structures.
High-speed scanning galvanometers combined with multi-axis synchronization improve processing efficiency by 2-3x.
Compatible with titanium alloys, stainless steel, ceramics, PMMA, and other materials.
Features modular loading/unloading and dust removal systems.
Ergonomic design with flexible hardware/software integration and an intuitive interface for ease of operation.
Parameters of 3D Instrument Micropore Laser Forming Machine
Widely used in 3C electronics, medical devices, aerospace, semiconductors, and new energy industries, including:

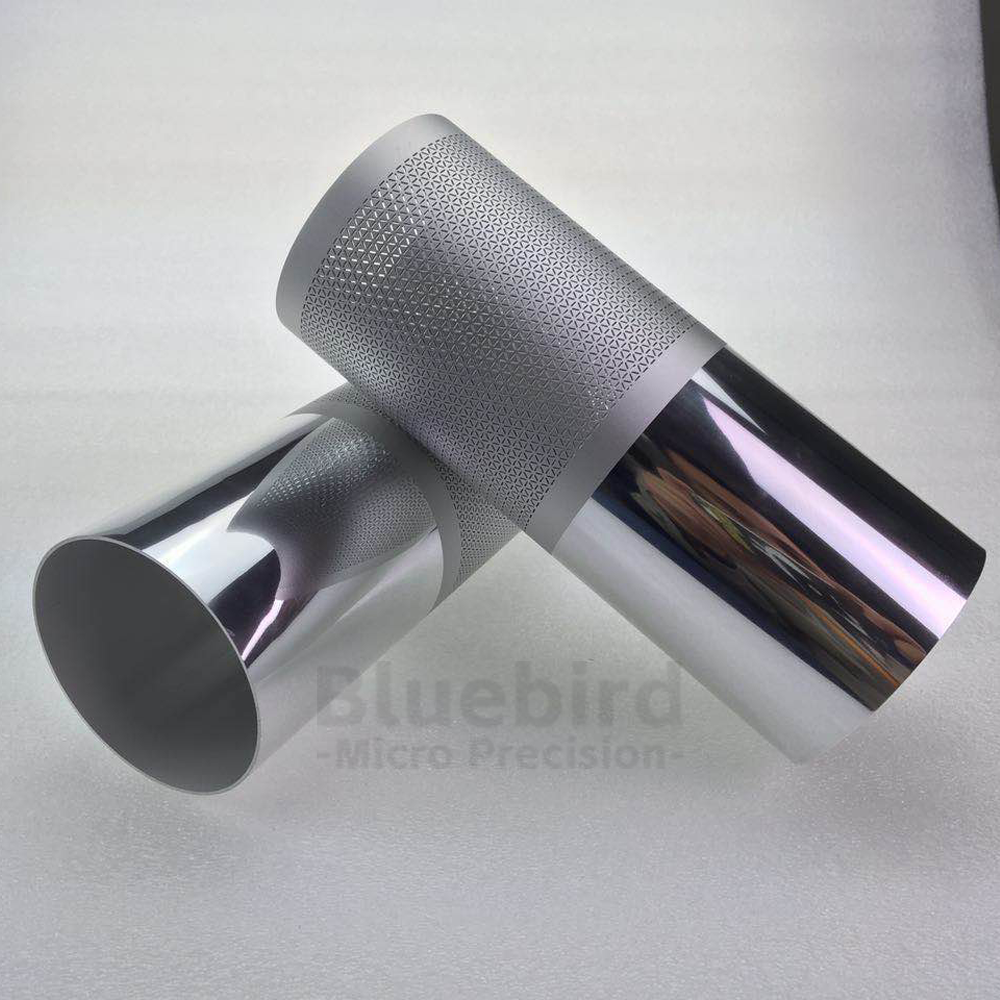

Snowflake-shaped holes in smart speaker square/round tubes.
Cooling holes for nozzle valve cores, lampshade turbine blades.
Heat dissipation micro-holes in chip structures.
Micro-hole forming for battery electrodes.
Blind groove forming on stainless steel tubes.
Decorative hole patterns on aluminum tubes.
Precision hole cutting for rings and finger accessories.
Sample Showcase of Laser Micro-Hole Forming
