Precision Thin-Wall Tube Laser Cutting Machine
Basic Info
Model No.: BTLC4000
Application: Laser Cutting
Applied Material: Acrylic, Glass, Leather, Mdf, Metal, Paper, Plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Crystal
Old And New: New
Laser Type: Fiber Laser
Cutting Area: Other
Support Graphic Format: Dxf, Dwg
Whether CNC: Yes
Cooling Method: Water Cooling
Place Of Origin: China
Certification: Ce, Ccc
Additional Info
Transportation: Ocean,Land,Air
Port: Shanghai Port,Shandong Port,Guangzhou Port
Product Description
The Precision Thin-Wall Tube Laser Cutting Machine is a specialized device designed for laser cutting vodeo, drilling, and slotting of thin-wall metal tubes. It utilizes a fiber laser and a precision motion control system, combined with intelligent software, to achieve complex contour cutting, multi-angle hole drilling, irregular-shaped cuts, and high-precision end-face processing for various thin-wall tubes, including constant-diameter and variable-diameter tubes.
Advantages of Precision Thin-Wall Tube Laser Cutting Machine
Non-contact laser cutting: Eliminates mechanical stress, preventing deformation caused by compression or vibration in thin-wall tubes.
High precision (±0.05mm): Meets stringent quality requirements for tubes with wall thicknesses of 0.1–3mm, especially suited for ultra-thin walls.
Versatile processing: Supports bevel cutting, chamfering, and 3D cutting for tubes with circular, square, elliptical, and other cross-sectional shapes.
360° full-circumference cutting: Equipped with automatic rotating fixtures to complete multi-station processing in a single clamping.
High repeatability (±0.02mm): Features high-resolution servo motors and precision linear guides for consistent batch production.
Automation options: Includes automatic loading/unloading systems, real-time monitoring, and visual positioning systems, boosting efficiency by 3–5 times compared to traditional methods.
Precision Thin-Wall Tube Laser Cutting Machine Parameters
Applications of Precision Thin-Wall Tube Laser Cutting Machine
Precision thin-wall tube laser cutting machine widely used in electronics, hardware, automotive, aerospace, medical devices, and precision instruments. Suitable for materials such as hard alloy steel, stainless steel, nickel-titanium alloy, aluminum, copper, and titanium tubes. Typical applications include:
Electronics: Heat dissipation copper tubes, e-cigarette tubes, stylus pen tubes, smart speaker aluminum tubes.
Medical: Puncture needles, liquid extraction needles, hypodermic tubes, ultrasonic scalpel sleeves, endoscope snake bone tubes, medical needles.
Automotive/Aerospace: Engine fuel nozzles, titanium alloy conduits, high-flexibility spring tubes.
Consumer goods: Lipstick tubes, microphone components, audio housings, lamp tubes.

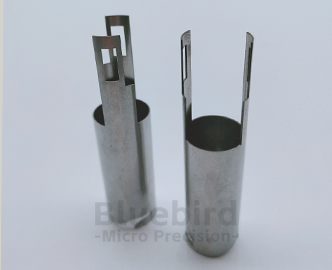

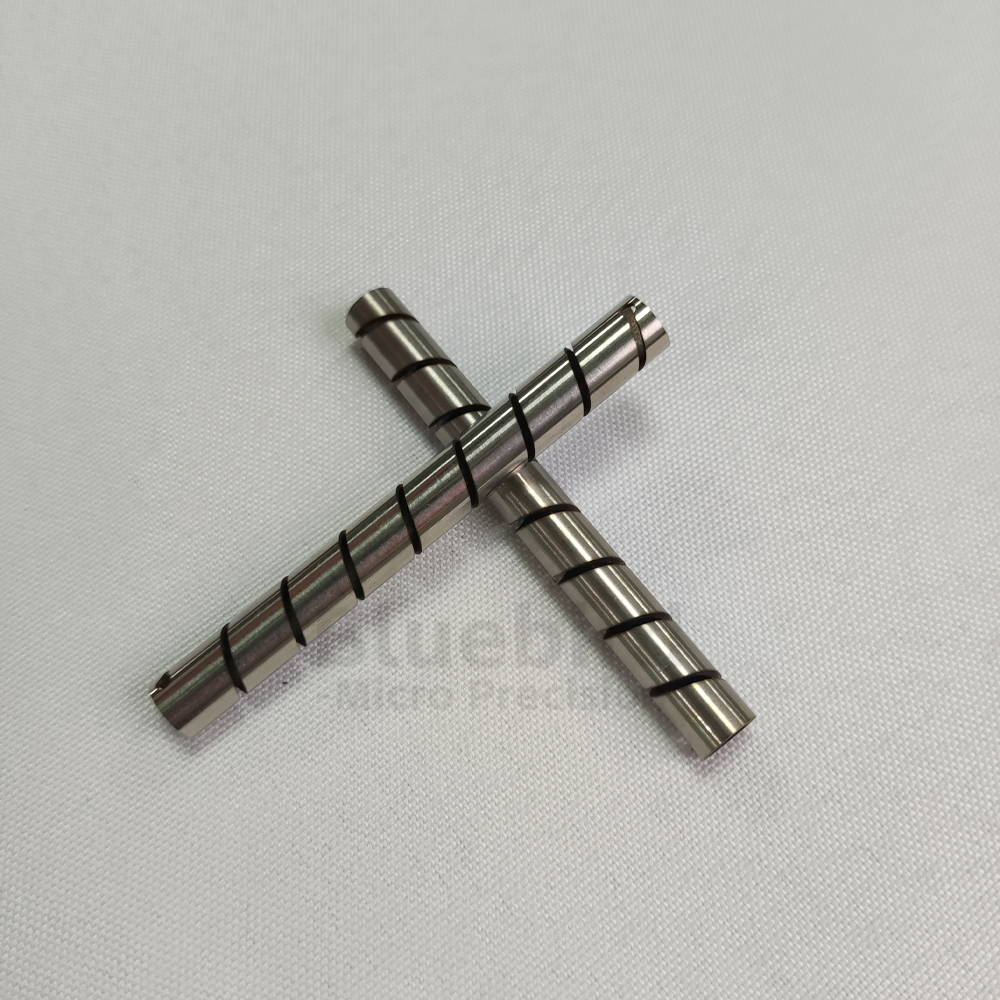

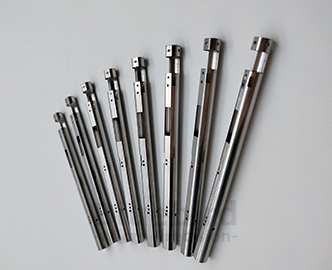

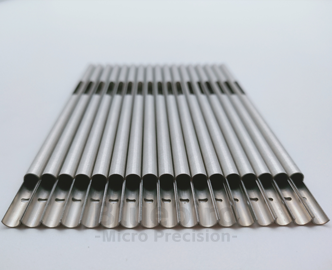

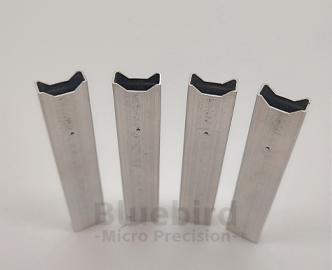

Laser Cutting sample display
Customization and Selection Services
We offer tailored solutions to meet specific needs, including:
Special tube adaptation: Optimized parameters for ultra-thin walls (<0.3mm) or large-diameter tubes (>Φ300mm).
Automation integration: Optional add-ons like automatic loading/unloading, real-time monitoring, and visual positioning systems for continuous production.
